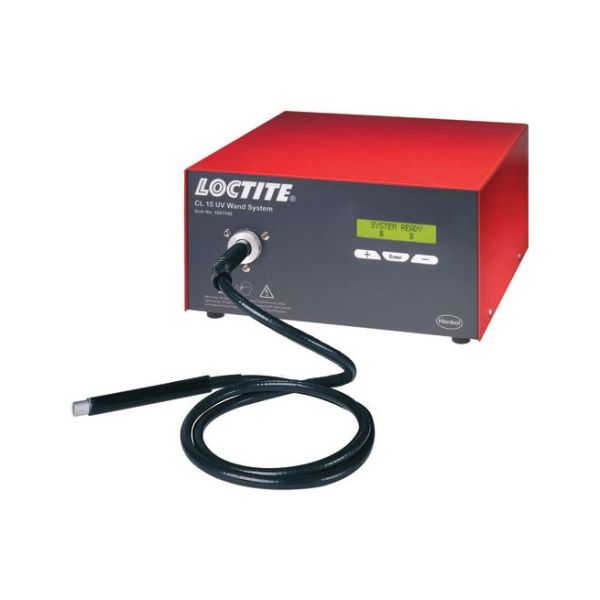

Loctite 1661548 UV Curing Wand System, 100 Watt

A high output, 100 watt, mercury arc, spot curing system.

• Universal AC input power (90-260 VAC, 50/60Hz)
• Can be operated in either timed, manual, or cycle mode
• PLC compatible, allowing it to be easily integrated into automated production systems
• Dimensions: 12.5" W x 9.75"D x 5.5"H.

• Powerful mercury arc lamp provides up to 15W/cmsq
• Manual, timed, or cycle shutter operation with complete cycle control

• UV exposure time (shutter open)
• Dwell time (shutter closed)

• Internal dichroic mirror minimizes the transmission of heat caused by “waste energy” while allowing critical UV light to pass
• Requires light guide 983677 or dual light guide 983684 (sold separately)
